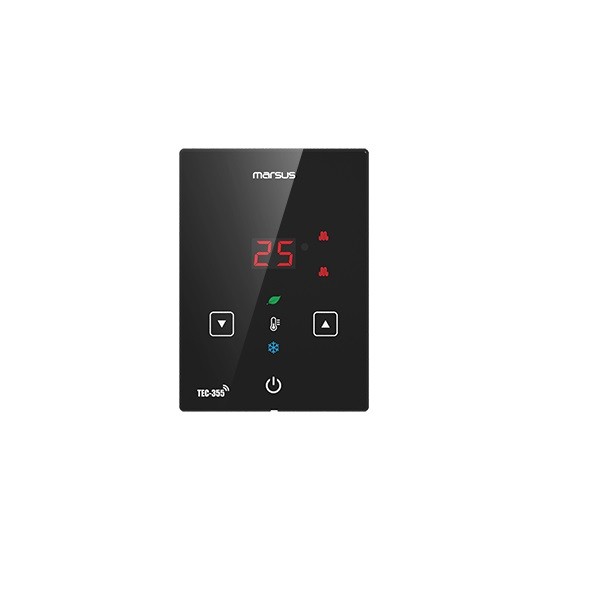

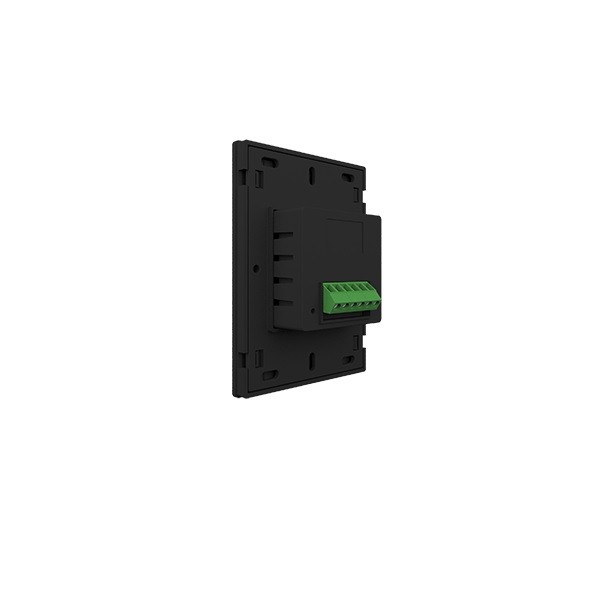

Thermostat cooling TEC-355 Marsusgroup

Attributes : Storage temperature: 70 ~ 10 CTemperature measurement range: 50 ~ 0. CMeasurement accuracy: 1. CViewing accuracy: 1 degree CelsiusControl sensitivity: 1. CTemperature setting range: 35 ~ 15. CMaximum ambient humidity: 85RH%Maximum output current: 5 ampsSetting the Mersum heating thermostat model TEC-355:After touching the on / off key: Temperature setting:The optimum temperature can be adjusted numerically between 35-5 and 1 degree Celsius. To do this, for each degree increase / decrease in the desired temperature, touch the top and bottom keys or touch once, respectively. Economic mode:(Leaf shape) The temperature setting range in this case is between 10 and 15 degrees Celsius. The default temperature is 12. C. Frozen mode:By touching this key, the temperature setting range is between 2 and 5 degrees Celsius. The default temperature is 3. C. Output command display:Thermostat operation and steering to the outputs automatically turn on the heating output if the ambient temperature drops and turn it off to achieve the desired temperature. Error:Normally, the display should show the ambient temperature. Otherwise, the display of the phrase (Er1) means that the bases of the sensor are connected to each other and (Er2) indicates the temperature range of the sensor. Remote control keys:If you need to use a remote control device, it must be provided separately. Do not install the thermostat in these places: In front of sunlight or stove or heaterIn the vicinity of hot or cold water pipesOn a wall behind which pipes and chimneys are hiddenBlind spots behind the door or corner of the roomDead air places that are neither cold nor hotAdjacent to the head or hot water pipe
